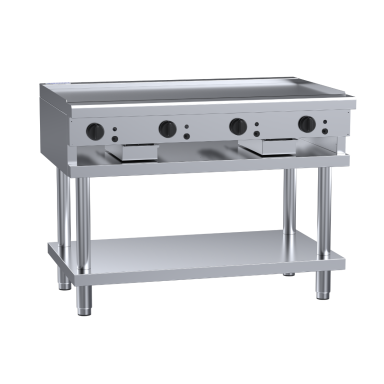

Luus CS-12P-T Asian Range Teppanyaki Grills

Luus CS-12P-T Asian Range Teppanyaki Grills

Teppanyaki Grill

• 18 mj/h burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 16mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-12P-T plate: 1190mm x 540mm; 0.64m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil bin 1.2mm stainless steel

Overall Construction

• Heavy duty construction
• Low rear splashback and side skirts
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range

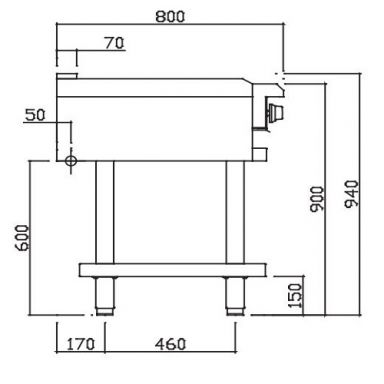

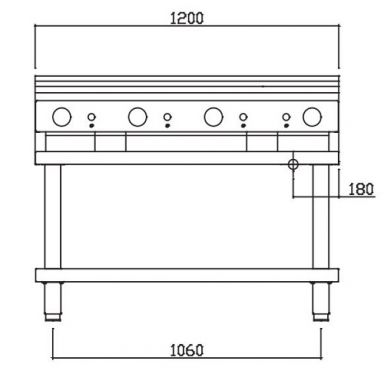

Dimensions

• 1200mm x 800mm x 940mm H
• Working height 900mm
• Weight 130kg
• Packed dimensions 1255mm x 860mm x 1120mm H
• Packed weight 160kg

Connections

• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Benchtop model gas connection: 60mm from bottom
• Supplied with gas regulator (specify Nat or LP on order)
Cleaning & Servicing
• Easy access to all parts & components from front

Options/Accessories

• Rear castors
• Joining caps
• Ribbed or chrome finish on hotplates
• RH and LH side shields
• Benchtop mount (specify when ordering)
• Extended warranty
