Description

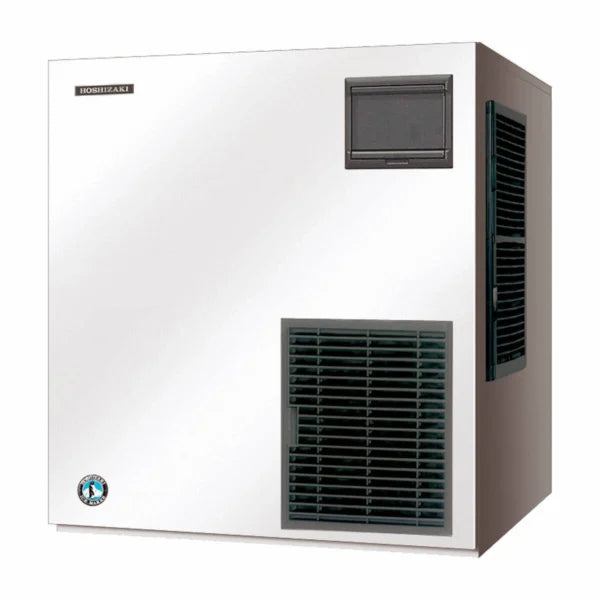

Hoshizaki / FM-750AKE / 650kg Flake Ice Maker
PURE & COOL COMMERCIAL ICE MAKER
The FM-750AKE Series Commercial Ice machines produce up to 530kg of flaked ice a day which is often used for produce display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, water consumption is equal to ice production.
PRODUCT FEATURES
-
“Freeze Burn” is no longer an issue when displaying fresh fish or produce
-
Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs
-
Automatic flush function, helps keep the ice making system clean
-
ControllerboardwithOperationalStatusdisplayassistsin trouble shooting
-
Due to the auger system, water consumption is equal to ice production
-
Can be converted to Nugget ice by changing the extruding head and cutter (parts at an additional cost)
- 3 Years Warranty
K202509
Donwloads
Specification
| Production Capacity per 24hours | Approx. 750kg @10°C Air temp; 10°C Water Approx. 650kg @ 21°C Air temp; 15°C Water Approx. 530kg @ 32°C Air temp; 21°C Water |
| Max Storage Capacity |
91000026 Ice Storage Bin 91000027 Ice Storage Bin 91000053 Ice Storage Bin 91000054 Ice Storage Bin |
| Width | 762mm |
| Depth | 700mm |
| Height | 780mm |
| Weight Net | 133kg |
| Packed Weight | 143kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz / 15 AMP Plug |
| Amperage | Running: 9.2A Starting: 43A |
| Refrigerant Charge | R404A |
| Operating Conditions | Ambient Temp.: 5-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.05-0.8MPa (0.5-8bar) Voltage Range: Rated Voltage ±10% |
| Additional Parts |
91000026 Ice Storage Bin 91000027 Ice Storage Bin 91000053 Ice Storage Bin 91000054 Ice Storage Bin 96000006 Top Kit 96000008 Top Kit 87000123 Water Filter Kit Twin 450mm cartridges 87000107 450mm Replacement Cartridge 87000149 Water Filter System & Guage 81000116 Stainless Steel Hose 95001013 Adjustable Leg |
