Hobart / AMXXL / PROFI Glass and Dishwasher, Large / W811 x D815 x H1610 mm / 155kg / 1Y Warranty
Description

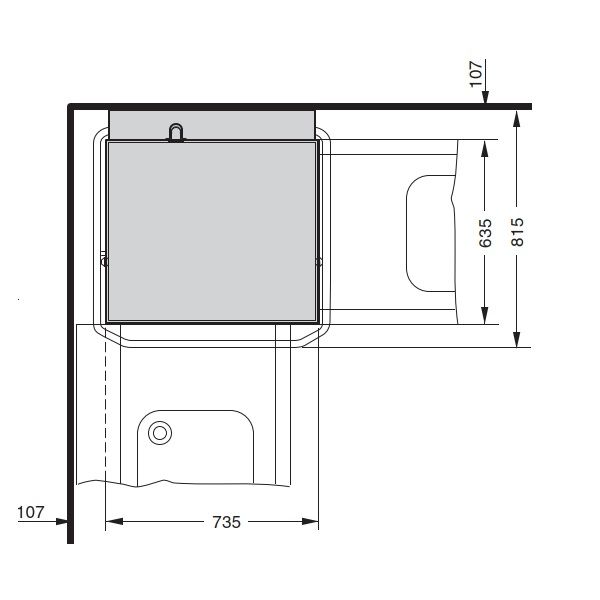

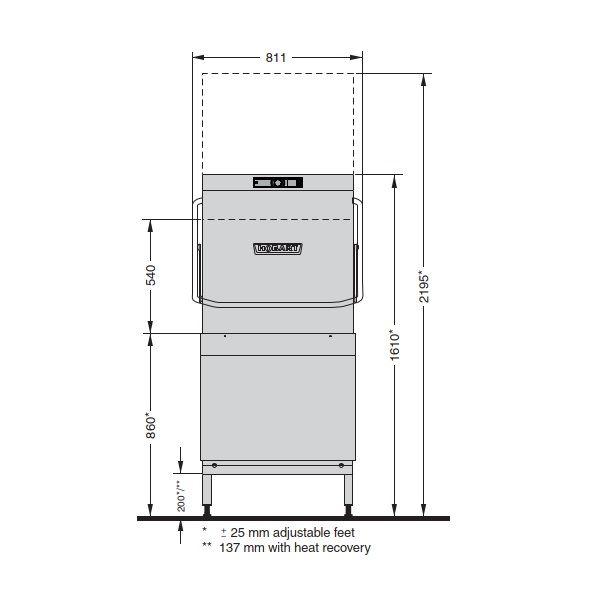

- 811(L) x 735(W) x 1610-2195mm(H)
- Hood-type dishwasher for straight through or corner operation
- Nominal capacity up to 70 racks/h or 1,680 plates/h (with optional P-XL rack) or 2,520 glasses/h, 560 sheets/h, 140 1/1 GN-boxes/h, 70 EN-boxes/h
- Large chamber with 660 x 500 mm usable space
- Extra large loading height of 540 mm
- 6 automatic cycles: short, standard, intensive, starch-removal, permanent, hygiene
- Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water
- Heat and noise insulated hood
- Strainer soil sensor
- Refill signal (detergent / rinse aid)
- Self-cleaning program
- USB-interface for comfortable download of operational data

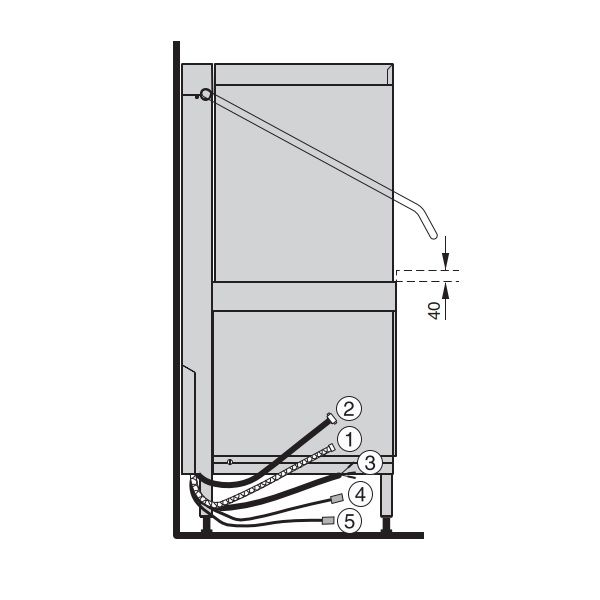

- Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- Tank, frame, wash / rinse arms and panels are stainless steel 1,4301
- 1 plate rack P-18-12
- 1 tray rack T-06-09
- 1 cutlery rack C-01-07
Variants
| Order number | Description |
|---|---|
| AMXXL |
Basic model 415 / 50 / 3NPE - 32 A |
| AMXXL-V |
AMXXL with addition of VAPOSTOP - prevents steam escaping from the machine when the hood is opened |
| AMXXL-HL |
AMXXL with AUTO HOOD LIFT - closes hood at the push of a button & opens automatically at the end of a cycle. Back panel is included |
| AMXXL-VHL |
AMXXL with VAPOSTOP and AUTO HOOD LIFT |
| AMXXL-R |
AMXXL with DRAIN HEAT RECOVERY - cold water connection |
| AMXXL-VR |
AMXXL with VAPOSTOP and DRAIN HEAT RECOVERY - cold water connection |
-
XL wash chamber: the large hood and chamber provide best wash results, e.g. for
- up to 24 plates/rack
- up to 8 sheets 600 x 400 mm
- up to 8 trays 660 x 500 mm
- up to 2 1/1 GN-boxes - VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with single-button control and remaining cycle time indication
- WASHSMART app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order
- SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.
- Exhaust energy storage: the fully enclosed 4-sided hood keeps steam and energy inside the system: energy saving up to 3 kW, less humidity in the kitchen area and better hygienic conditions.
- CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools.
- USB-interface: download of operational data via USB
- GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35 %.
- ROTOR-X wash system: separate rotating upper & lower 4-spoke wash arms deliver dynamic wash power.
- VAPOSTOP (optional): prevents vapour escaping from the machine when the hood is opened.
- Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced.
- Interlocked strainer: prevents operation without tank strainer.
- EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning.
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
Technical data
| Cycle Times* | 52 / 75 / 180 / Continuous (20mins) |
| Water Consumption | 2 l/rack |
| Tank Capacity | 40 litres |
| Tank Heating | 2.5 kW |
| Power Supply | 415 / 50 / 3NPE |
| Booster Loading - Standard | 12.4 kW |
| Booster Loading - Alternative | 6.2 kW |
| Total Loading - Standard | 16.3 l 3 x 32 A |
| Total Loading - Alternative | 10.1 l 3 x 25 A |
| Wash Pump | 1.1 kW |
| Rack Size | 500 x 500 l 600 x 500 mm |
| Loading Height | 540 mm |
| Noise Level | 67 dB (A) |
| Weight (gross / net) | 155 / 135 kg |
Accessories
| Order number | Description |
|---|---|
| SEF-15/055 |
Back panel (required if unit is not installed against wall, all units have closing frame to wall at rear) |
| T-XL |
Tray rack 600 x 500 mm, for 10 GN-trays or 12 trays up to 470 mm length, height 11 cm |
| P-XL |
Plate rack 600 x 500 mm, for 24 plates up to 240mm or 22 large plates (285mm), height 11cm |
| B-XL |
Universal flat rack 600 x 500 mm, with wide mesh bottom (for example for cutlery baskets for cutlery in upright position) |
| SEF-14/063 |
Thermolabel temperature setting |
