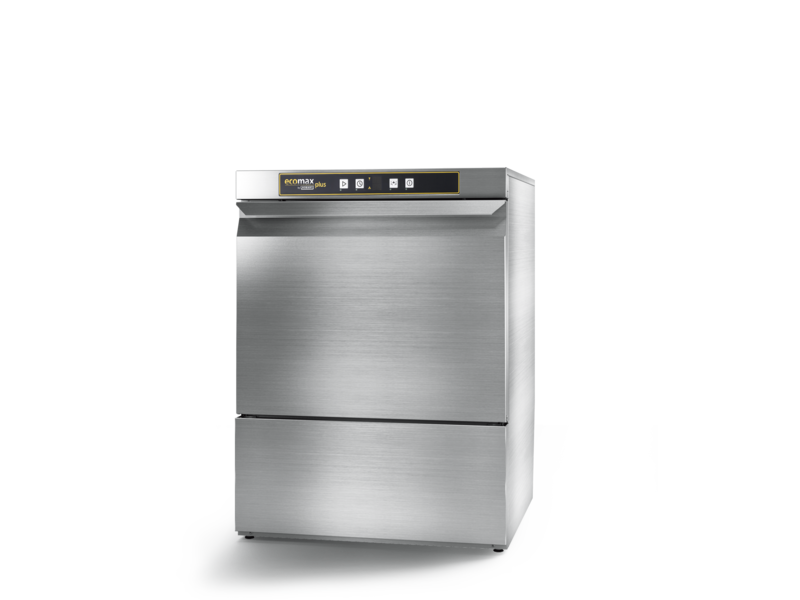

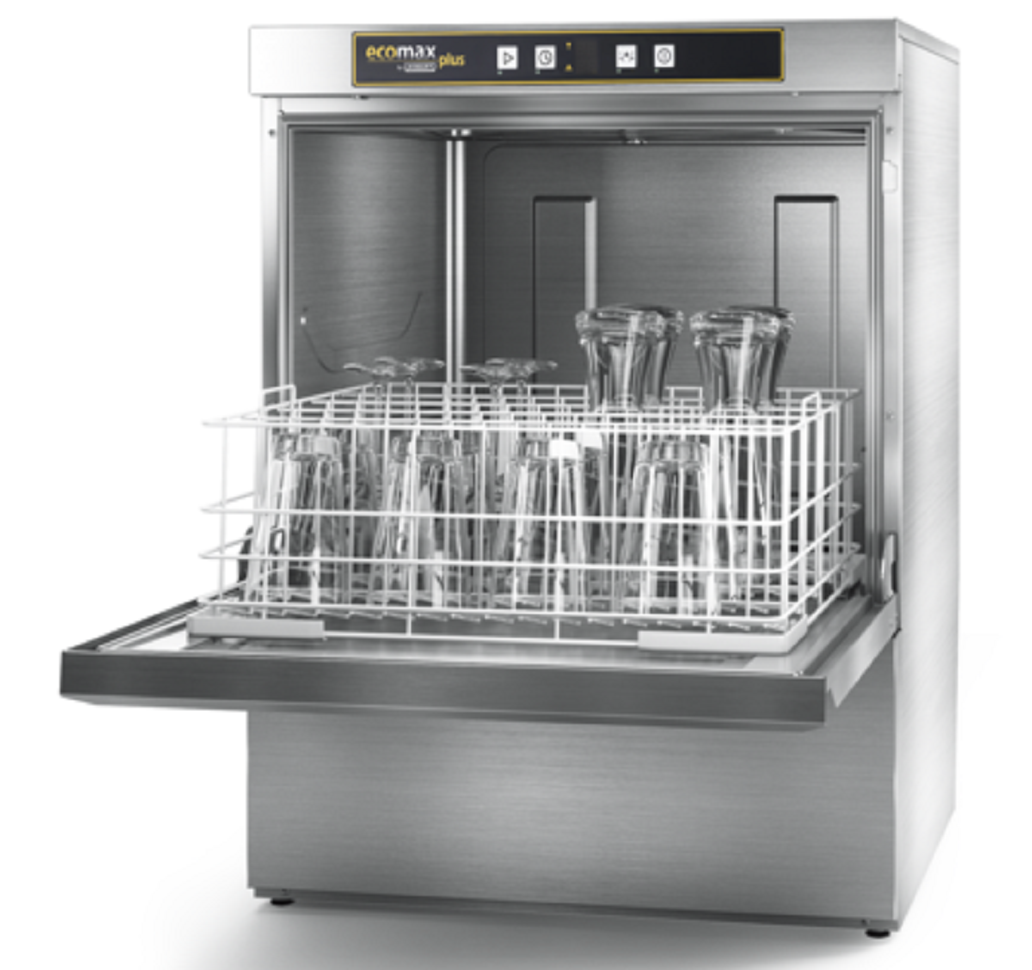

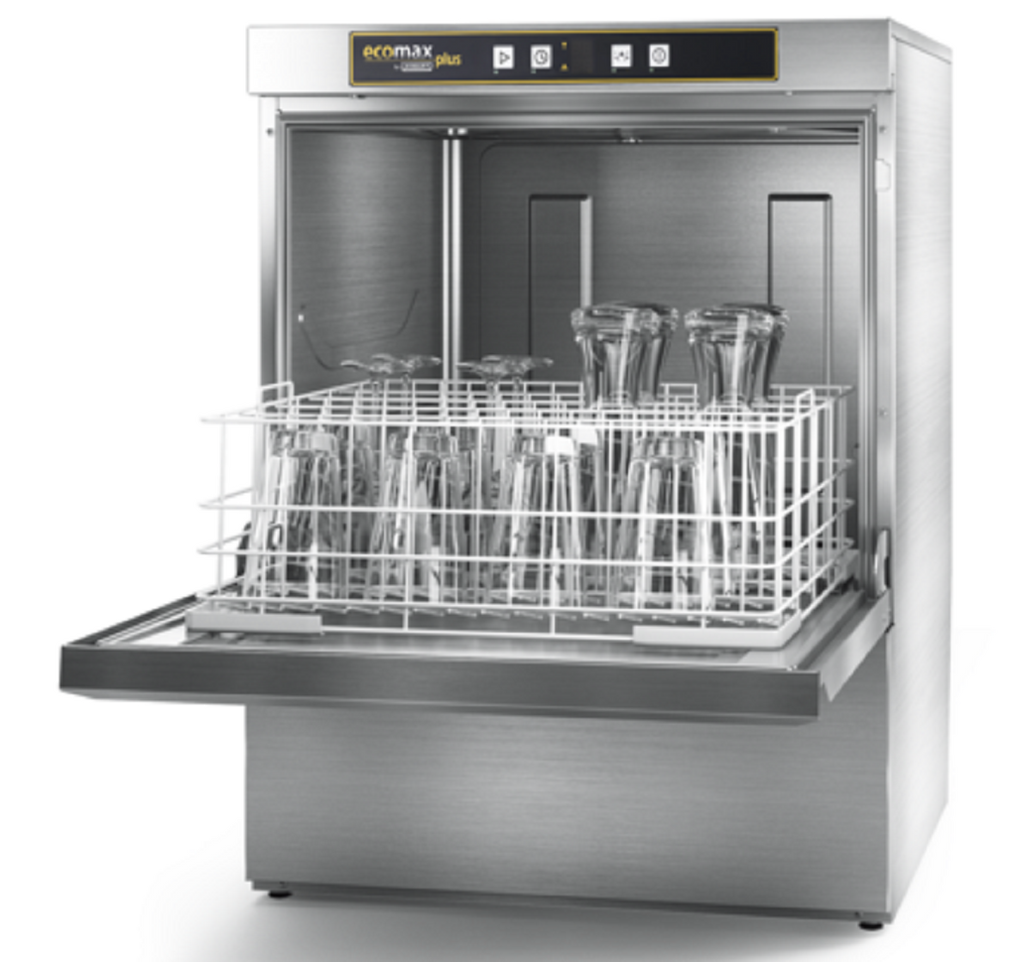

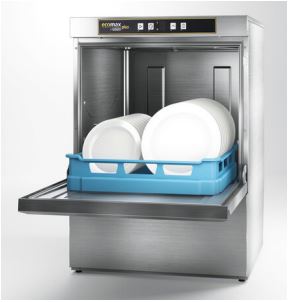

Hobart Ecomax Plus F515 Undercounter Dishwashers

Description

- Front door glasswasher with optional double rack system
- Nominal capacity up to 60 racks/h or 1080 plates/h or 2160 glasses/h
- Nominal capacity with double rack up to 80 racks/h (40 plate racks + 40 glass/cup racks)
- 3 automatic cycles: 60 / 90 / 180 seconds
- Ready to install - completely equiped: fill / drain hose, power cord (240V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- tank, frame, rinse arm and panel are stainless steel 1.4301
- 1 plate rack P-18-12
- 1 universal rack B-00-07
- 1 cutlery box

Standard Features

- HIGH VOLUME undercounter dish and glass washer
- LOW VOLUME (10.6litre) single sheet deep drawn wash tank - no welds
- EFFICIENT & GUARANTEED - 2.3 litres / cycle water consumption - rinse pump included to guarantee rinse volume, pressure and sanitation results
- Electronic control with digital temperature read-out
- 3 CYCLES: 60 / 90 / 180 secs - Nominal capacity up to 60 racks/h
- HEAT AND NOISE INSULATED - double walled construction
- Insulated smooth opening counter balanced door
- Removable tank strainer, coarse filter and pump suction casing to maximise wash results and reliability
- Integrated SELF CLEANING on drain out
- Top and bottom rotating wash and rinse arms
- Ready to install - equipped with: fill/drain hoses, electrical cable & plug(15amp 240V), detergent & rinse aid dispensers, rinse pump, drain pump, back flow preventer (Watermark approved), adjustable front feet for levelling and castor rear feet for ease of moving for cleaning under
- Supplied with 1 off 500 x 500mm plate rack, flat rack and single cutlery container
- WATERMARK approved
- 240 / 50 / 1 - 15amp

Technical Data

Cycle Times*	60 / 90 / 180 seconds
Water Consumption	2.3 L/cycle
Tank Capacity	10.6 litres
Power Supply	240 / 50 / 1 (standard)
Power Cord	15 A single phase plug & lead
Booster Loading - Standard	2.1 kW (interlocked)
Total Loading - Standard	2.9 kW l 15 A
Wash Pump	0.6 kW
Rack Size	500 x 500 mm

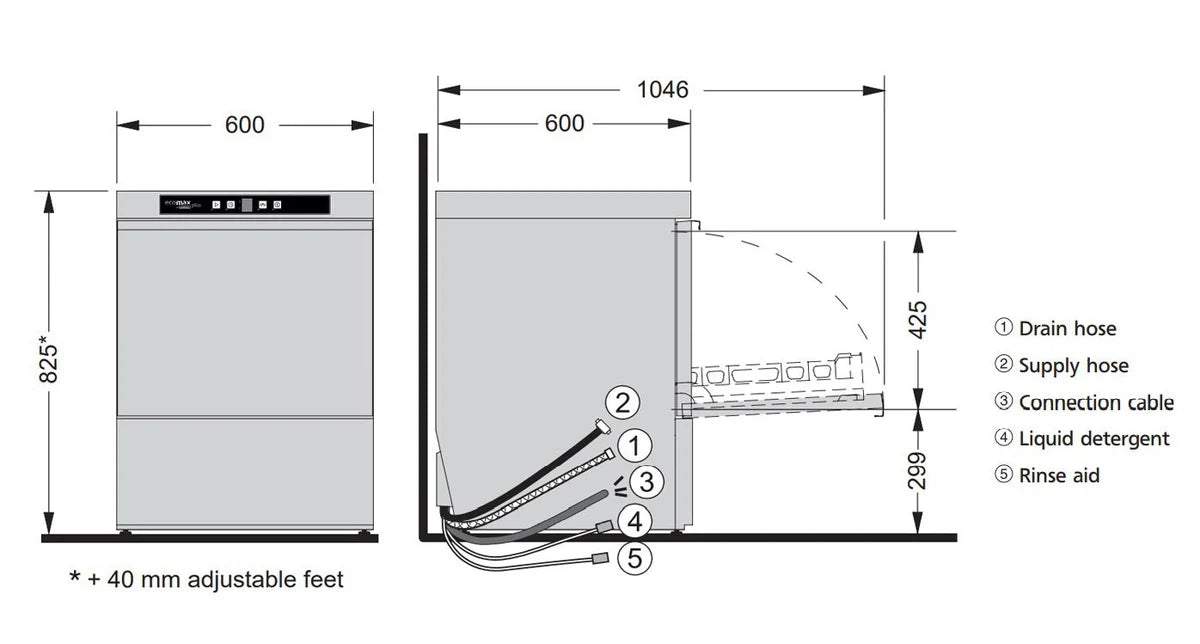

Loading Height	425 mm
Noise Level	60.5 dB (A)
Weight (gross / net)	70 / 60 kg
Spec Sheet
