HOBART / FX-90B / PROFI DISHWASHER

Description

- Front door glass and dishwasher with optional double rack system
- Nominal capacity up to 40 racks/h or 720 plates/h or 1,440 glasses/h
- Nominal capacity with double rack: up to 80 racks/h (40 plate racks + 40 glass/cup racks)
- 6 automatic cycles: short, standard, water X-change, STARCH-REMOVAL, permanent, hygiene
- Smooth counterbalanced door with closing mechanism
- Ready to install - completely equipped: fill / drain hose, power cord (415 V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- Tank, frame, rinse arm and panels are stainless steel 1.4301
- Integrated WiFi module
- 1 plate rack P-18-12
- 1 universal rack B-00-07
- 1 cutlery rack with 4 boxes 01-246175-1

Standard Features

- VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with singlebutton control and remaining cycle time indication.
- WASHSMART app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order.
- SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result.

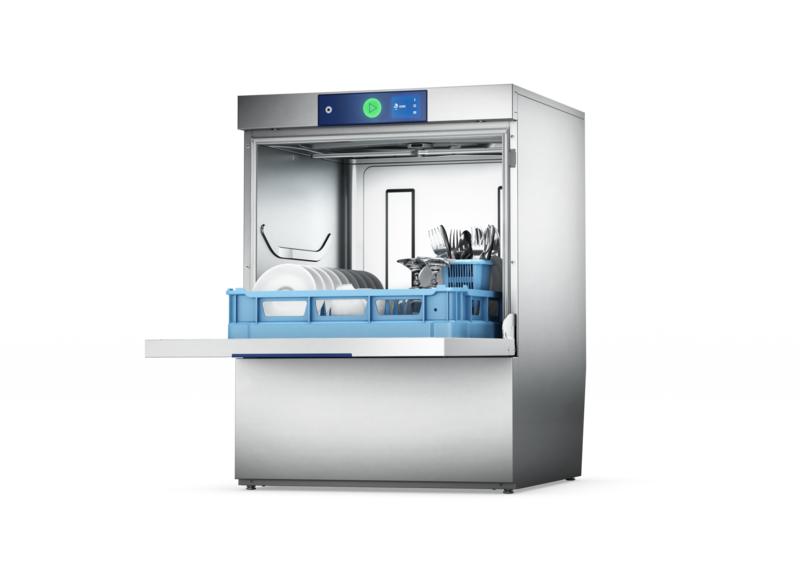

- 2IN1 double rack system: two racks can be washed in a single wash cycle. One rack of cups can be washed underneath, while a second rack containing dishes and cutlery can also be washed above it. Thanks to the optimum use of the entire wash chamber the performance of the machine can be doubled.
- CLIP-IN wash and rinse arms: can be removed with one hand and without any tools.
- Intelligent data documentation: automatic recording of important operational data and consumptions and indication on the display.
- USB-interface: comfortable download of operational data in form of a protocol via USB.
- GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35%.
- Interlocked strainer: prevents operation without tank strainer.
- Optional refill signal: monitors contents of external as well as integrated chemical containers.
- Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber.

Technical Data

Cycle Times*	90 / 180 / 360 sec. and special cycles
Water Consumption	2 L/Rack
Tank Capacity	10.65 L
Tank Heating	0.8 kW
Power Cord	15 A single phase plug & lead
Power Supply	240 / 50 / 1
Booster Loading - Standard	1.4 kW l 15 A
Total Loading - Standard	2.7 kW l 15 A
Wash Pump	0.6 kW | 350 l/min
Rack Size	500 x 500 |500 x 530 mm
Loading Height	425 mm
Noise Level	60.5 dB (A)
Weight (gross / net)	70 / 60 kg
Spec Sheet

*Please refer to manufacturer's terms & conditions for warranty

*Thermostop guarantees required temperatures with cold water and / or 230 V connection, the actual cycle times extend accordingly.
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT.
To avoid spots and streaks on the wash ware, we recommend the usage of an demineralisation cartridge
(HYDROLINE STAR / STAR EXTRA) or a reverse osmosis system HYDROLINE PURE.
