Hobart ECOMAX504 Under bench Dishwasher

Available: Limited stock
$4,086.00 + GST $6,810.00
  • Order within

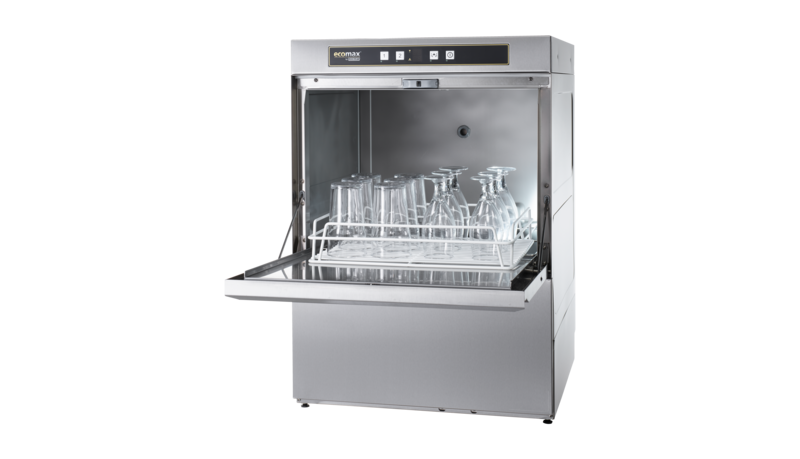

Hobart ECOMAX504 Under bench Dishwasher

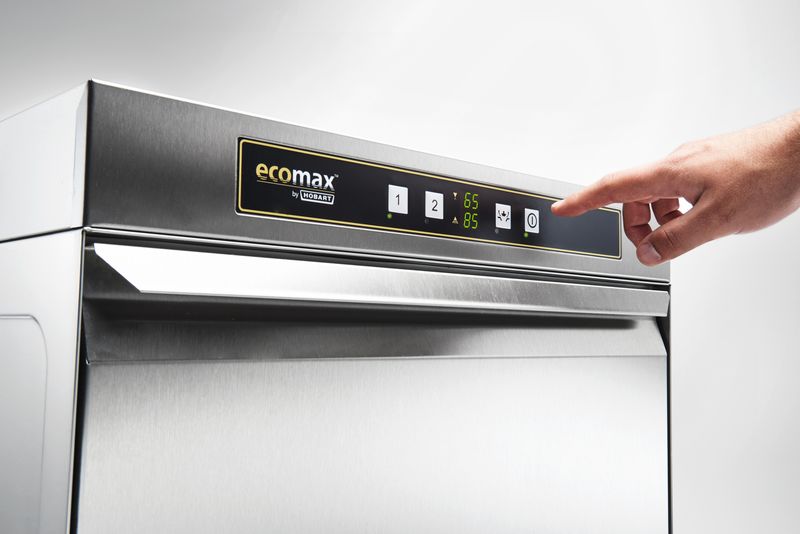

The Hobart ECOMAX504 Series Under bench Dishwasher is made in Germany and features easy to use electronic touch button controls.

It has 2 cycles - 60 & 150 seconds with electronic temperature gauges and self cleaning on pump out with no stand pipe (plug) to remove, minimising effort and saving you valuable time.

It is suitable for all dish and glass washing applications with usable chamber height of 356mm. The Hobart ECOMAX504 is a Watermark approved re-circulating low rinse volume dish / glasswasher

with insert support grid allowing all rack sizes including 17" x 14" glass racks, 435mm x 435mm racks, 450mm x 450mm racks and 500 mm x 500mm to be used. It has a double skinned door

for strength and durability in loading, patented wide angle fan nozzle wash arm and stainless steel rinse arm assembly to maximise wash and rinse performance, a wash pump inlet strainer

to ensure machine reliability, detergent and rinse aid dispensers as standard, and is backed by Hobart nation wide support.

- Easy-to-use electronic controls with 2 cycles 60 & 150 seconds

- Electronic temperature gauges

- Suits all racks up to 500x500mm - stainless steel grid shelf supports all rack sizes

- Re-circulating & low 2.9 litre rinse volume machine

- Double skin door for strength & durability for loading machine

- Usable chamber height of 356mm

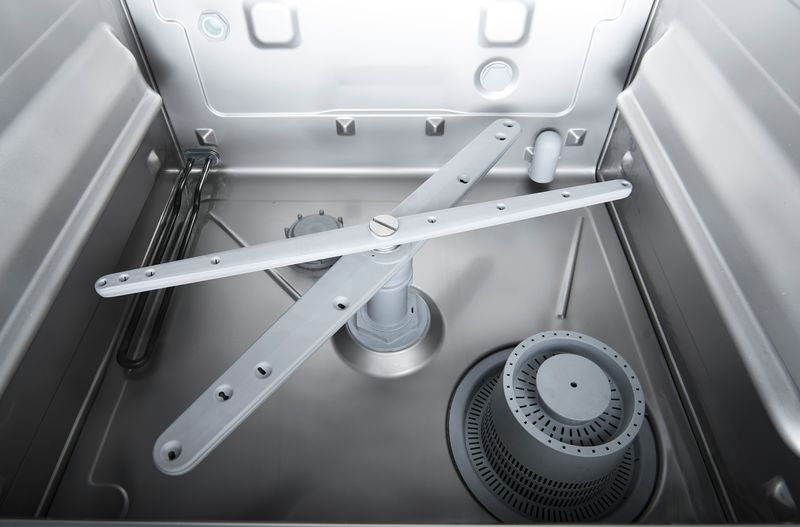

- Polypropylene wash & stainless steel rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash & rinse performance

- Self-cleaning cycle on drain out

- Wash pump inlet strainer to ensure machine reliability

- "Connect & use" - fill & drain hoses, pump-out drain, chemical dispensers & power lead / plug included for quick & easy installation

- Adjustable rear castors and front feet for easy cleaning

- Includes 1 x plate rack & 1 x cutlery holder

- Back flow prevention device as standard to meet Watermark Approval and ATS 5200.101



TECHNICAL DATA

- Flexible drain hose 1000mm: pump-out drain standard

- Fresh water connection: pressure hose 1000mm; Connection size: 3/4" BSP

- Flow pressure 80-600kPa

- Incoming water temperature: 55-65'C

- Power cord: 15amp single phase plug & lead

- Hose for detergent & hose for rinse aid : included

- Wash tank temperature: 55-60'C

- Rinse water temperature (booster tank): minimum 82'C

- Low temperature cut-out (thermostop) activated : yes

- Cycle times: 60sec, 180sec

- Water consumption: 2.9Litres

- Tank capacity: 25 Litres

- Tank heating: 2.0kW

- Power supply: 240/50/1-15amp

- Booster loading: 1.8kW

- Total loading: 2.3kW

- Pump capacity: 370Watts

- Loading height: 356mm

- Dimension : 580 W 830 H 630D mm
