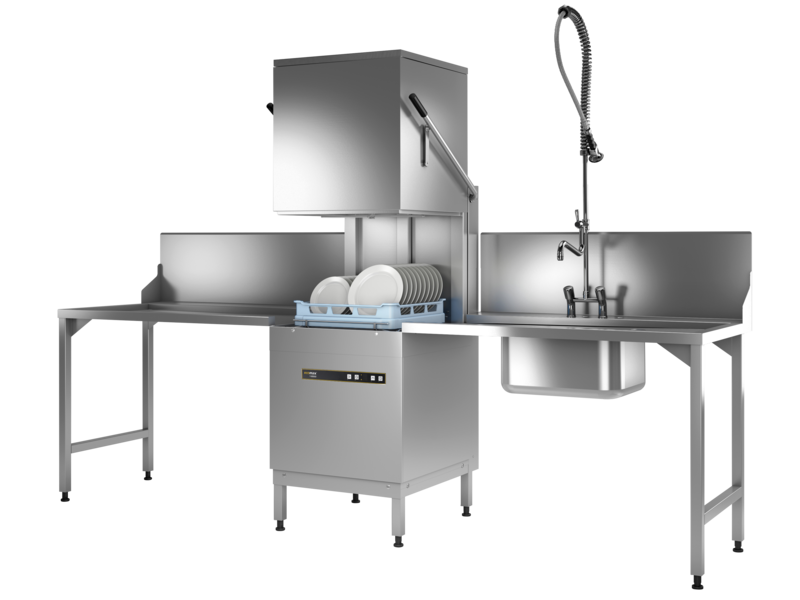

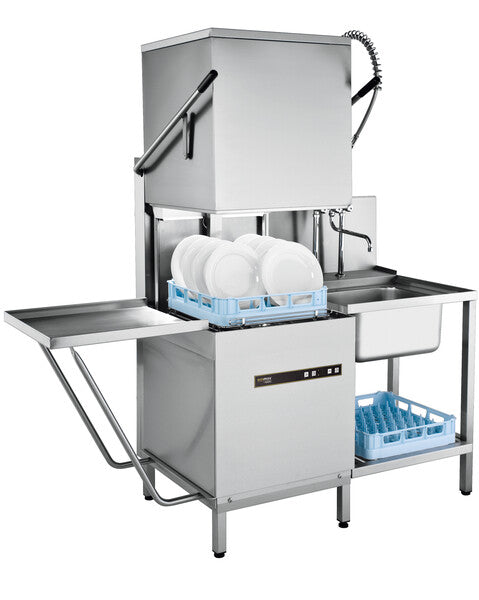

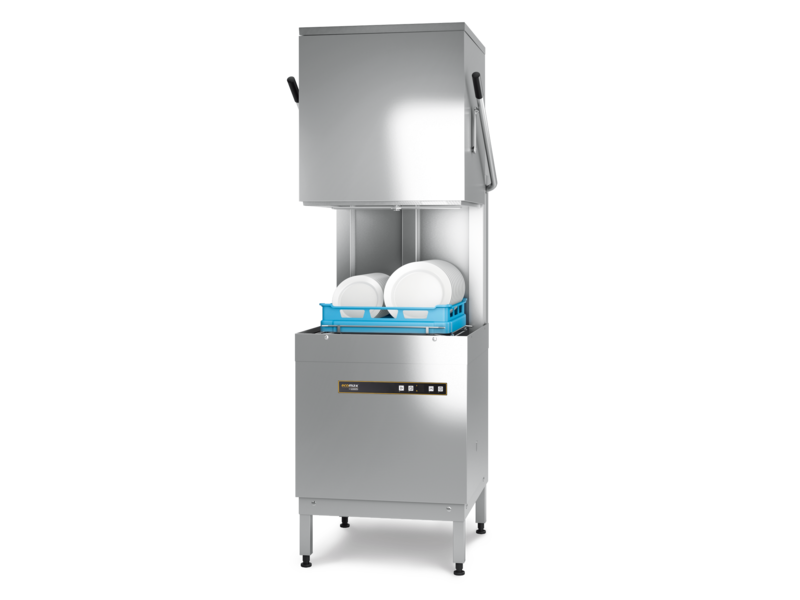

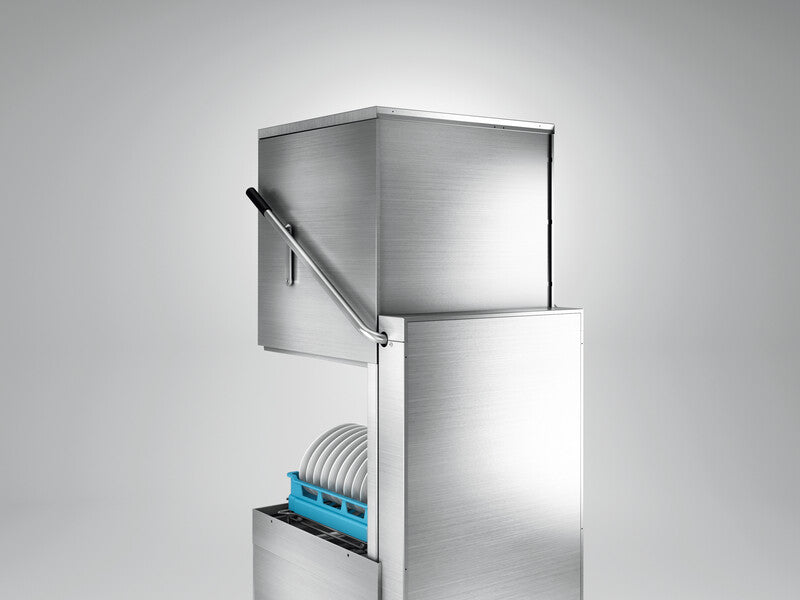

Hobart ECOMAX 604 Hood type Dishwasher / 97kg / W713 x D821 x H1480 / 1 Year Warranty
Description
- Hood-type dishwasher for straight through or a corner operation
- Nominal capacity up to 48 racks/h or 810 plates/h or 2,160 glasses/h
- 3 automatic cycles: 75 / 150 & 180 seconds
- Ready to install - completely equipped: fill / drain hose, power cord (240V, 15 amp), detergent dispenser, rinse aid dispenser, drain pump and back-flow preventer
- tank, frame, rinse arm and panels are stainless steel 1.4301
- 1 plate rack P-18-12
- 1 universal rack B-00-07
- 1 plastic cutlery box
Standard Features
- EASY-TO-USE: electronic controls with 3 cycles - 75, 150 & 180 seconds
- Digital temperature gauges
- Suitable for all dish & glass washing applications. Useable chamber height of 440mm. Able to wash 1/1 GN pans when using optional open ended tray racks
- Low 2.3 litres per cycle rinse volume dish / glasswasher
- Fully enclosed 4 sided hood design - avoiding loss of energy / steam
- Optimum hygienic - deep drawn tank with coved corners (no welds) and SELF-CLEANING CYCLE
- Polypropylene wash and stainless steel rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash & rinse performance
- Wash pump inlet strainer to ensure machine reliability
- Includes chemical dispensers, fill hose, power lead / plug & pump-out drain for quick & easy installation
- Includes 1 x plate rack & 1 x cutlery holder
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
- NOT SUITABLE FOR USE WITH REVERSE OSMOSIS SYSTEMS
- MADE IN GERMANY
Technical Data
| Power Code | 15 A single phase plug & lead |
| Wash Tank Temperature | 55 - 65C |
| Minimum 82C | Yes |
| Cycle Times* | 75 / 150 / 180 seconds |
| Water Consumption | 2.3 litres |
| Tank Capacity | 21 litres |
| Tank Heating | 2.5 kW |
| Power Supply | 240/50/1-15A |
| Booster loading - Standard | 2.6 kW |
| Total loading - Standard | 3.2 kW |
| Pump capacity | 0.4 kW |
| Loading Height | 440 mm |
| Bench to bench - internal dimension | 628 mm |
| Spec Sheet |  |
