Description

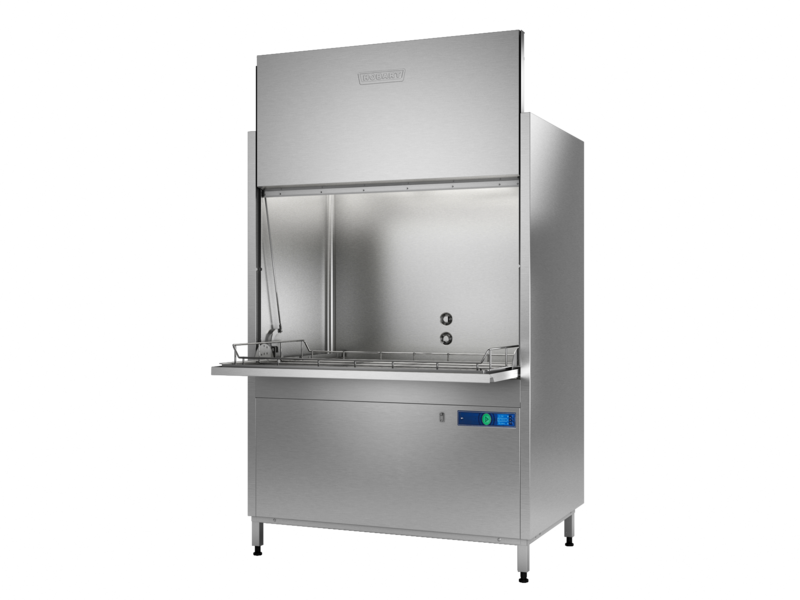

Hobart UXT PROFI UTENSIL WASHER, EXTRA WIDE / 384kg / W1375 x D845 x H2417 mm / 1Y Warranty
Description
- Front door utensil washer
- Useable inside dimensions w x d x h: 1258 x 773 x 825 mm
- Nominal capacity up to 30 cycles/h
- 5 automatic cycles: short, standard, intensive, continuous, hygiene
- Double walled housing
- Multi-Setting: booster capacity may be reduced from 15.3 kW to 9.1 kW if connected with hot water
- Strainer soil sensor
- Refill signal (detergent / rinse aid)
- Self-cleaning programme
- Ready to install - completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump, back-flow preventer, tank heating, back panel
- Tank, frame, wash / rinse arms and panels are stainless steal 1.4301
- (Optional) Exhaust Heat Recovery with VAPOSTOP
- Includes - stainless steel base rack, tray support insert (323637)
Product Features:
- VISIOTRONIC control: single-button control with remaining time indicator together with text and graphic display
- SENSO-ACTIVE resource management: constantly measures the quality of the wash water and keeps the amount of rinsing needed in each rinse cycle to the minimum in order to guarantee a fully hygienic wash result
- POWER wash: high-pressure washing to wash heavily soiled wash items
- CLIP-IN wash and rinse arms: wash and rinse arms can be removed with one hand and without any tools
- USB-interface: comfortable download of operational data in form of a protocol via USB
- GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35%
- ROTOR-X wash system: separate rotating upper and lower 4-spoke wash arms deliver dynamic wash power
- VAPOSTOP (optional): prevents vapour to escape from machine when door is opened
- The optional exhaust heat recovery uses steam to heat fresh feed water and reduces the amount of power needed, saving up to 5.2 kW
- Loading height: above-average loading height of 860 mm
- Intelligent energy management: the available energy is used continuously. Thus, at a low total loading value the heating time gets reduced
- Interlocked strainer: prevents operation without tank strainer
- EASY-CLEAN concept: blue markings in the machine help the operator to identify the components which require cleaning
- Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
Technical Data
| Cycle Times* | 120/240/360 secs and special cycles |
| Water Consumption | 7.5 l/rack |
| Tank Capacity | 130 litres |
| Tank Heating | 6.1 kW |
| Power Supply | 415 / 50 / 3NPE |
| Booster Loading - Standard | 15.3 kW |
| Booster Loading - Alternative | 9.1 kW |
| Total Loading - Standard | 21.6 kW l 3 x 35 A |
| Total Loading - Alternative | 15.6 kW l 3 x 35 A |
| Wash Pump | 2 x 2.9kW l 2 x 1,150 l/min |
| Rack Size | 1,240 x 700 mm |
| Loading Height | 860 mm |
| Noise Level | 70 dB (A) |
| Weight (gross / net) | 315 / 295 kg |
