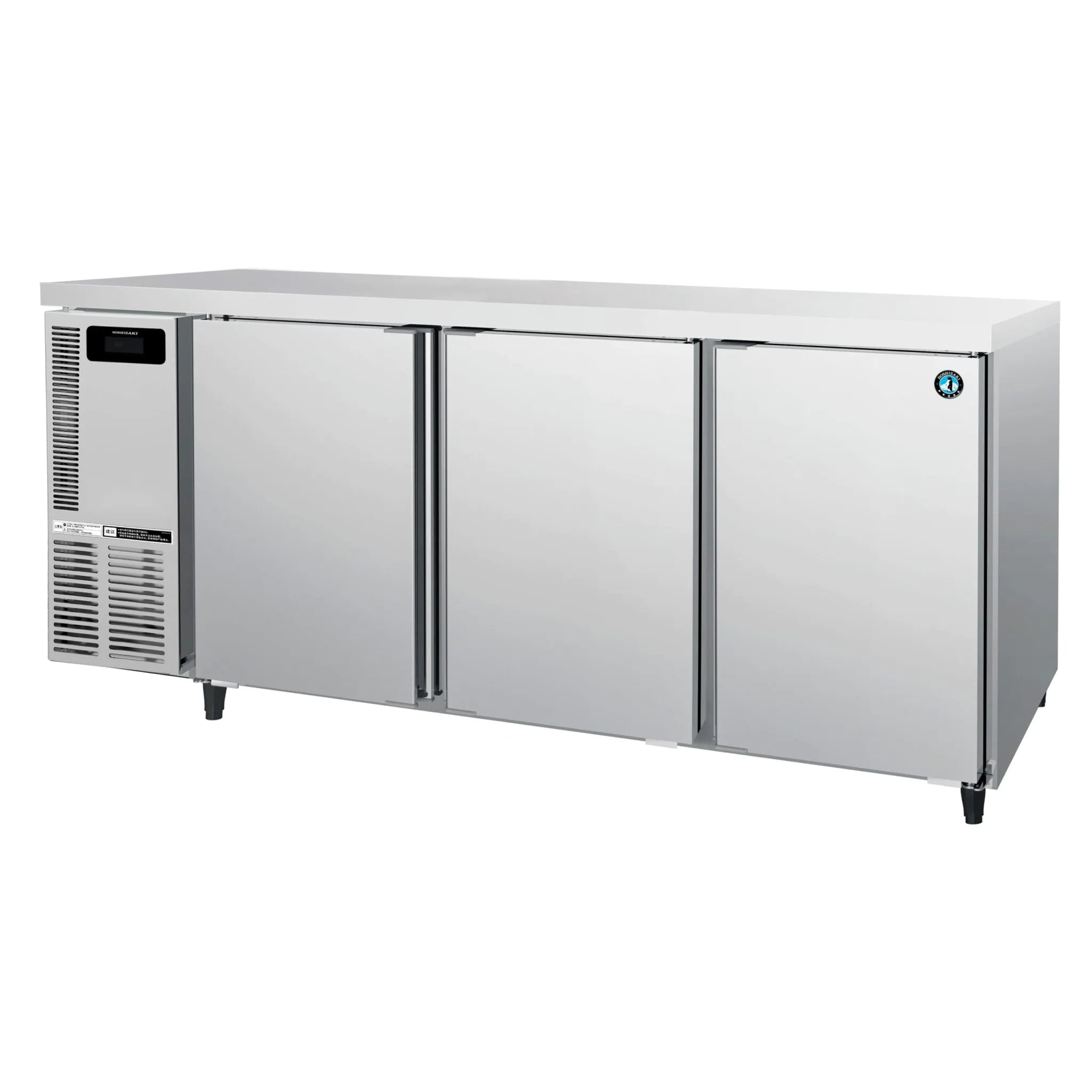

Hoshizaki - 401L 3 Door Underbench Pillarless Freezer - FT-186MA-A-ML
A three-door underbench freezer with no centre pillar and 401L of storage. Perfect for kitchens that want to make the most of their freezer space.
At a Glance
- Capacity: 401L
- Temperature range: -23°C to -7°C
- Doors: 3 doors, no centre pillar
- Size (W×D×H): 1800 × 600 × 815mm (incl. castors)
- Power: 1 Phase 220-240V, 10 Amp plug
- Refrigerant: R404A
Key Features
- No centre pillar – fits trays and containers of any size
- Stainless steel top
- Programmable electronic controller and display
- Forced-air refrigeration for even temperatures
- 6 shelves included (max. 60kg per shelf)
- 4 x 115mm lockable castors, spanner and spacer included
- Optional adjustable legs 150–180mm (sold separately)
Full technical details are in the Specification tab.
M202610Hoshizaki - 401L 3 Door Underbench Pillarless Freezer - FT-186MA-A-ML
Specifications
| Interior | Stainless Steel, ABS Plastic (Doors) |
| Exterior | Stainless Steel, Galvanized Steel (Rear/Bottom); ABS plastic (Top & Bottom on Door) |
| Max Storage Capacity | 401L |
| Temperature Control | Microprocessor(Digital Temp Indication); Adjustable from -23 to -7°C |
| Evaporator | Fin & Tube type |
| Outside Dimensions Width | 1,800mm |
| Outside Dimensions Depth | 600mm |
| Outside Dimensions Height | 815mm (Includes 115mm Castors) |
| Inside Dimensions Width | 1,440mm |
| Inside Dimensions Depth | 436mm |
| Inside Dimensions Height | 599mm |
| Weight Net | 93kg |
| Packed Weight | 98kg |
| Refrigeration System | Forced Air Circulation |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz /10amp Plug |
| Amperage | Rated: 2.7A |
| Refrigerant | R404A |
| Operating Conditions | Ambient Temp.: 5-38°C; Voltage Range: Rated Voltage ±6% |
| Electrical consumption | 375W, Heater 397W,Defrost 330W*, (GEMS) kWh/24h – 8.58 |
| Shelf load | Maximum loading of each shelf is 60 kg |
| Additional Parts | 95001013 Adjustable Leg; 95002993 Adjustable Leg; 79001076 Castor Grey 180mm (each) |
| Manufacturer's Warranty | 3 Years Parts & Labour on KM/KMD/IM ice machines; 2 Years on most other models – varies by model |
| Warranty Provider | Hoshizaki Lancer (Australian distributor of Hoshizaki) |
| Register Your Product | hoshizaki.com.au/help-and-support/warranty-registration/ – have the model, serial number and purchase date ready |
| Warranty Claim / Service | Call 1300 551 361 (Mon–Fri 8am–4:30pm) or lodge online at hoshizaki.com.au/warranty-request/ (Have the model, serial number and purchase date ready.) · lancerservice@lancerworldwide.com |
Note: Please keep your Catering Sale tax invoice as proof of purchase. Register within 30 days for an extra 6 months (ice machines) or 12 months (refrigeration) of warranty.
