Description

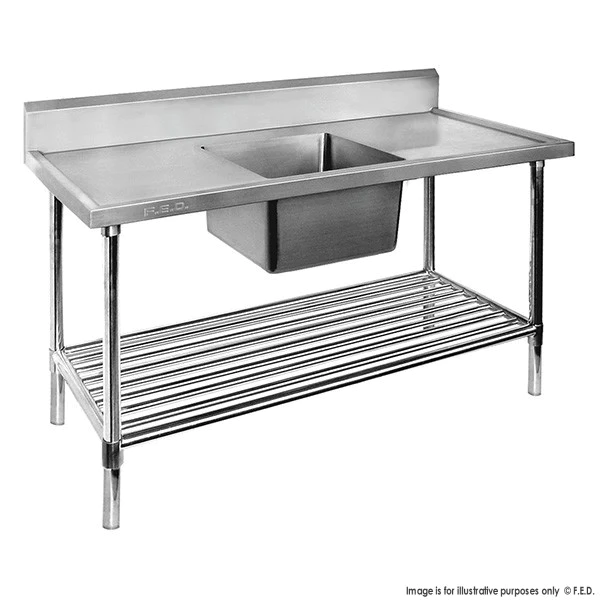

KITCHEN KNOCK - SINGLE SINK WORKBENCH SERIES (600/700 D x 900 H mm) + 150MM SPLASH BACK
| <Standard Sink Size: 450 W x 450 D x 300 H mm> | |
| Model Code | Dimensions |
| ASS-0660C | 600 W x 600 D x 900 H mm |
| ASS-0960L | 900 W x 600 D x 900 H mm |
| ASS-0960C | 900 W x 600 D x 900 H mm |
| ASS-0960R | 900 W x 600 D x 900 H mm |
| ASS-1260L | 1200 W x 600 D x 900 H mm |
| ASS-1260C | 1200 W x 600 D x 900 H mm |

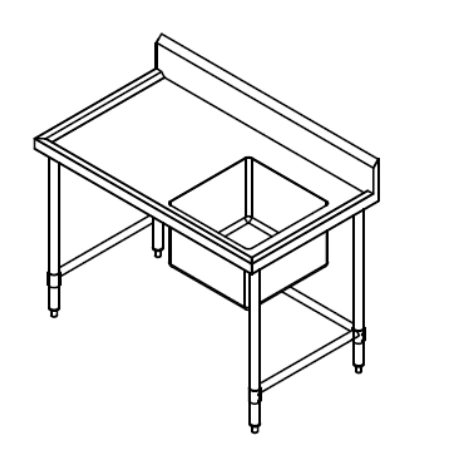

| ASS-1260R | 1200 W x 600 D x 900 H mm |
| ASS-1560L | 1500 W x 600 D x 900 H mm |
| ASS-1560C | 1500 W x 600 D x 900 H mm |
| ASS-1560R | 1500 W x 600 D x 900 H mm |
| ASS-1860L | 1800 W x 600 D x 900 H mm |
| ASS-1860C | 1800 W x 600 D x 900 H mm |
| ASS-1860R | 1800 W x 600 D x 900 H mm |
| ASS-2160L | 2100 W x 600 D x 900 H mm |
| ASS-2160C | 2100 W x 600 D x 900 H mm |
| ASS-2160R | 2100 W x 600 D x 900 H mm |
| ASS-7760LGS | 770 W x 600 D x 900 H mm (Large Sink - 610 W x 450 D x 450 H mm) |
| ASS-0670C | 600 W x 700 D x 900 H mm |
| ASS-0970L | 900 W x 700 D x 900 H mm |
| ASS-0970C | 900 W x 700 D x 900 H mm |
| ASS-0970R | 900 W x 700 D x 900 H mm |
| ASS-1270L | 1200 W x 700 D x 900 H mm |
| ASS-1270C | 1200 W x 700 D x 900 H mm |
| ASS-1270R | 1200 W x 700 D x 900 H mm |
| ASS-1570L | 1500 W x 700 D x 900 H mm |
| ASS-1570C | 1500 W x 700 D x 900 H mm |
| ASS-1570R | 1500 W x 700 D x 900 H mm |
| ASS-1870L | 1800 W x 700 D x 900 H mm |
| ASS-1870C | 1800 W x 700 D x 900 H mm |
| ASS-1870R | 1800 W x 700 D x 900 H mm |
| ASS-2170L | 2100 W x 700 D x 900 H mm |
| ASS-2170C | 2100 W x 700 D x 900 H mm |
| ASS-2170R | 2100 W x 700 D x 900 H mm |
| ASS-2470L | 2400 W x 700 D x 900 H mm |
| ASS-2470C | 2400 W x 700 D x 900 H mm |
| ASS-2470R | 2400 W x 700 D x 900 H mm |
| ASS-1570LGS | 1500 W x 700 D x 900 H mm (Large Sink - 610 W x 450 D x 355 H mm) |
<Additional Parts>
Please contact us if you need to add extra parts as below
1. Leg brace (W x D mm)
| ALB-0670 | suit 600*700mm benches |
| ALB-0970 | suit 900*700mm benches |
| ALB-1270 | suit 1200*700mm benches |
| ALB-1570 | suit 1500*700mm benches |
| ALB-1870 | suit 1800*700mm benches |
| ALB-2170 | suit 2100*700mm benches |
| ALB-2470 | suit 2400*700mm benches |
2. Legs with cators
Extra for adjusted legs with castors / a kit of 4
(with these legs and castors the total height of the bench is 900mm)
3. Four castors
Extra for 4 castors
(with the castors only the bench will be higher than 900mm)
4. Undershelf (W x D mm)
| SUS-0670 | suit 600*700mm benches |
| SUS-0970 | suit 900*700mm benches |
| SUS-1270 | suit 1200*700mm benches |
| SUS-1570 | suit 1500*700mm benches |
| SUS-1870 | suit 1800*700mm benches |
| SUS-2170 | suit 2100*700mm benches |
| SUS-2470 | suit 2400*700mm benches |
5. Pipe Undershelf (W x D mm)
| PUS-0970 | suit 900*700mm benches |
| PUS-1270 | suit 1200*700mm benches |
| PUS-1570 | suit 1500*700mm benches |
| PUS-1870 | suit 1800*700mm benches |
| PUS-2170 | suit 2100*700mm benches |
| PUS-2470 | suit 2400*700mm benches |
