Description

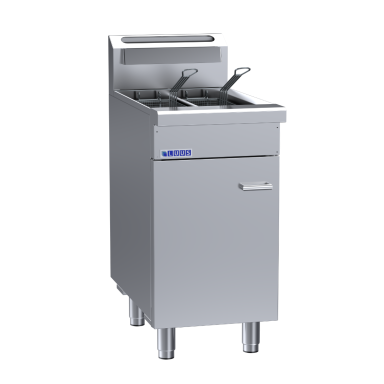

Luus FSV-45 Professional Series Split Pan Fryers
Split Pan Fryer
• 2 x 50mj jet burners with pilot, FFD and piezo ignition
• Fenwal thermostat valves with +/- 1° C tolerance
• Thermostat temperature range 150 - 200° C
• High temperature cut-out safety mechanism
• 1.5mm stainless steel stud weld efficient tank design
• 2 x 11.5 litre fry pot capacity
• Includes 2 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valves at bottom front of unit
Overall Construction
• Heavy duty construction
• 0.9mm 304 stainless steel double-skinned door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm 304 stainless steel front hob
• Front panels 0.9mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Includes stainless steel legs with 55mm adjustable range

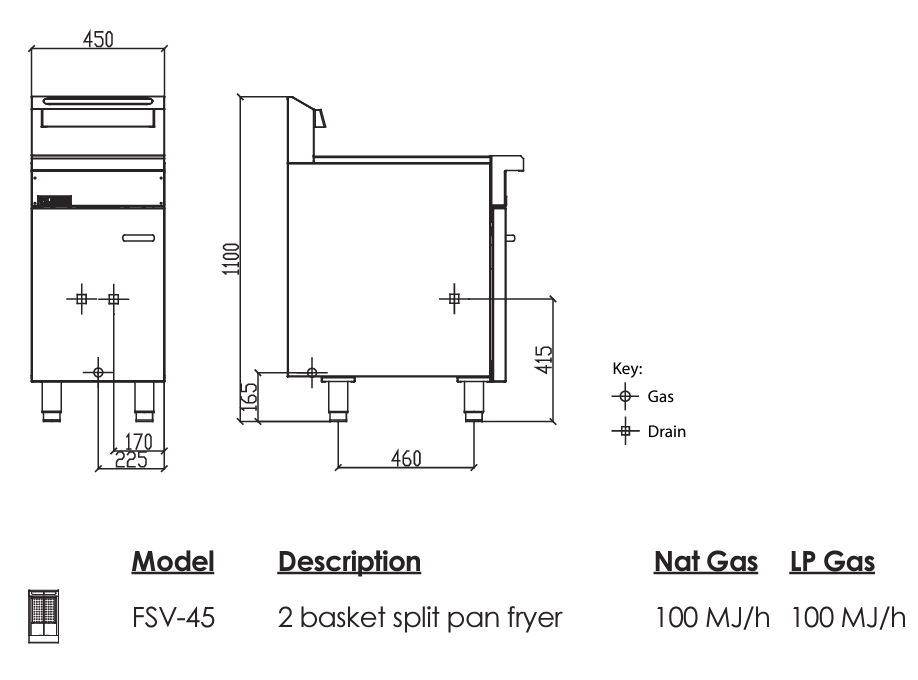

Dimensions
• 450mm x 800mm x 1100mm H
• Working height 900mm
• Weight 85kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 105kg
Connections
• Gas 3/4” BSP male
• Gas 225mm from right, 55mm from rear, 165mm from floor
• In-built gas regulator (specify Nat or LP on order)
• Drains 1 1/4” BSP male and 170mm in from both left and right, 200mm from front, 415mm from floor
Cleaning & Servicing
• Easy access to all parts & components from front
• Open pot easy-to-clean design
• Rear basket support bar
• Removable baskets and inserts
Options/Accessories
• Additional fryer baskets
• Joining caps
• RH and LH side shields
• Rear castors
202505
