Description

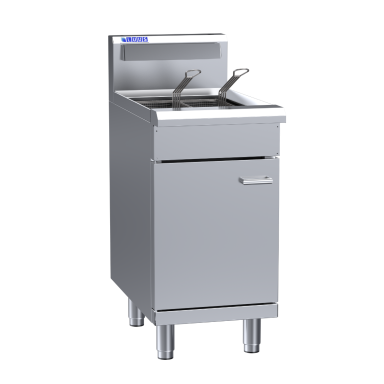

Luus FV-45 Professional Series V-Pan Fryers
V-Pan Fryer
- 100mj jet burner with pilot, FFD and piezo ignition
- Fenwal thermostat valve with +/- 1 ° C tolerance
- Thermostat temperature range 150 - 200° C
- High temperature cut-out safety mechanism
- 304 grade 1.5mm stainless steel tank
- 20 litre tank capacity
- Includes 2 stainless steel fryer baskets
- 0.9mm stainless steel perforated fish/base plate
- Tank drainage valve at bottom front of unit
Overall Construction
- Heavy duty construction
- Constructed 0.9mm 304 stainless steel door
- High density Fiberfrax Durablanket insulation around tank
- Welded 1.2mm 304 stainless steel front hob
- Front and side panels 0.9mm 304 stainless steel
- Splashback 1.2 mm 304 stainless steel
- Includes stainless steel legs

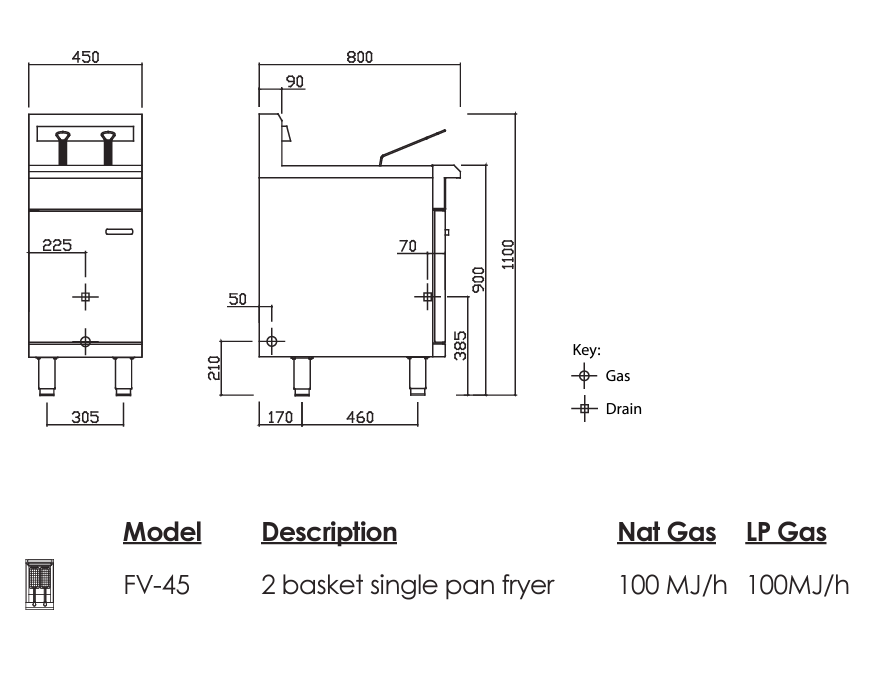

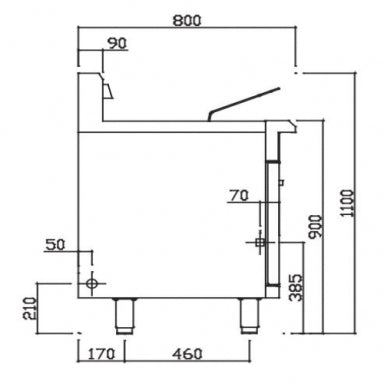

Dimensions
- 450mm x 800mm x 1100mm H
- Working height 900mm
- Weight 72kg
- Packed dimensions 640mm x 860mm x 1260mm H
- Packed weight 92kg
Connections
- Gas 3/4” BSP male
- Gas 225mm from right, 50mm from rear, 210mm from floor
- In-built gas regulator (specify Nat or LP on order)
- Drain 1 1/4” BSP male
- Drain 225mm from left, 70mm from front, 385mm floor
Cleaning & Servicing
- Easy access to all parts & components from front
- V-pan easy-to-clean design
- Rear basket support bar
- Removable baskets and inserts
Options/Accessories
- Additional fryer baskets
- Joining caps
- RH and LH side shields
- Rear castors
- Extended warranty
