Description

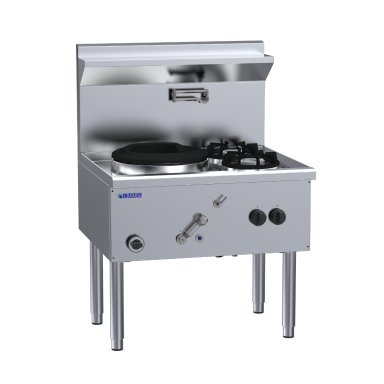

Luus WZ-1C2B Asian Range Waterless Woks
• 110 mj 24 jet chimney burners with pilot & FFD
• 333mm diameter standard size cast-iron wok ring
• 28 mj side burners with FFD standard (pilots extra)
• Air gap cooling system
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Wider front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles
Overall Construction
• Heavy duty construction
• Full skirt, enamelled cast-iron rings
• 1.5mm 304 stainless steel one-piece pressed deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback and front cover 1.2 mm 304 stainless steel
• Integrated hob 1.5mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Undertrays 0.9mm stainless steel
• Stainless steel removable legs
• 30mm height adjustment range

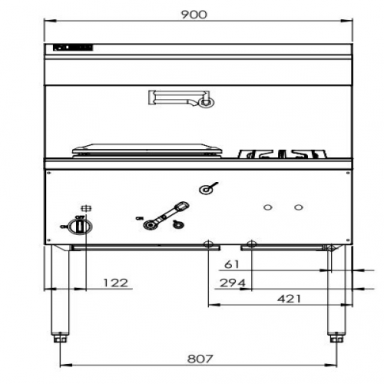

Dimensions
• 900mm x 800mm x 1300mm H
• Working height 800mm
• Weight 120kg
• Packed dimensions 950mm x 900mm x 1470mm H
• Packed weight 150kg

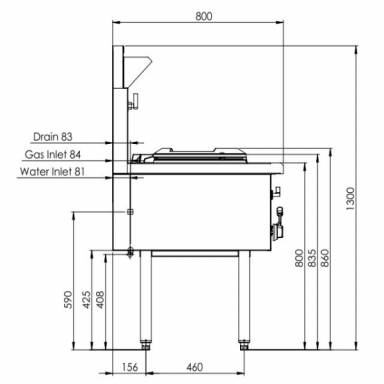

Connections
• Gas 3/4” BSP female
• Gas 294/421 mm from right, 84mm from rear, 425m to floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 61mm from right, 81mm to rear, 408mm to floor
• Drain 1/1/4” BSP male
• Drain 122mm from left, 83mm from rear, 590mm to floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Knee lever timer tap
• Replace Chimney burners with Duckbill or Dual Ring burners
• 250mm and 500mm wide clip on shelves (front)
• Wok Holder
• Clip On Sauce Holder
• Injector Cleaning Tool
• Joining caps & strips
• RH and LH side shields
• Rear castors
