Description

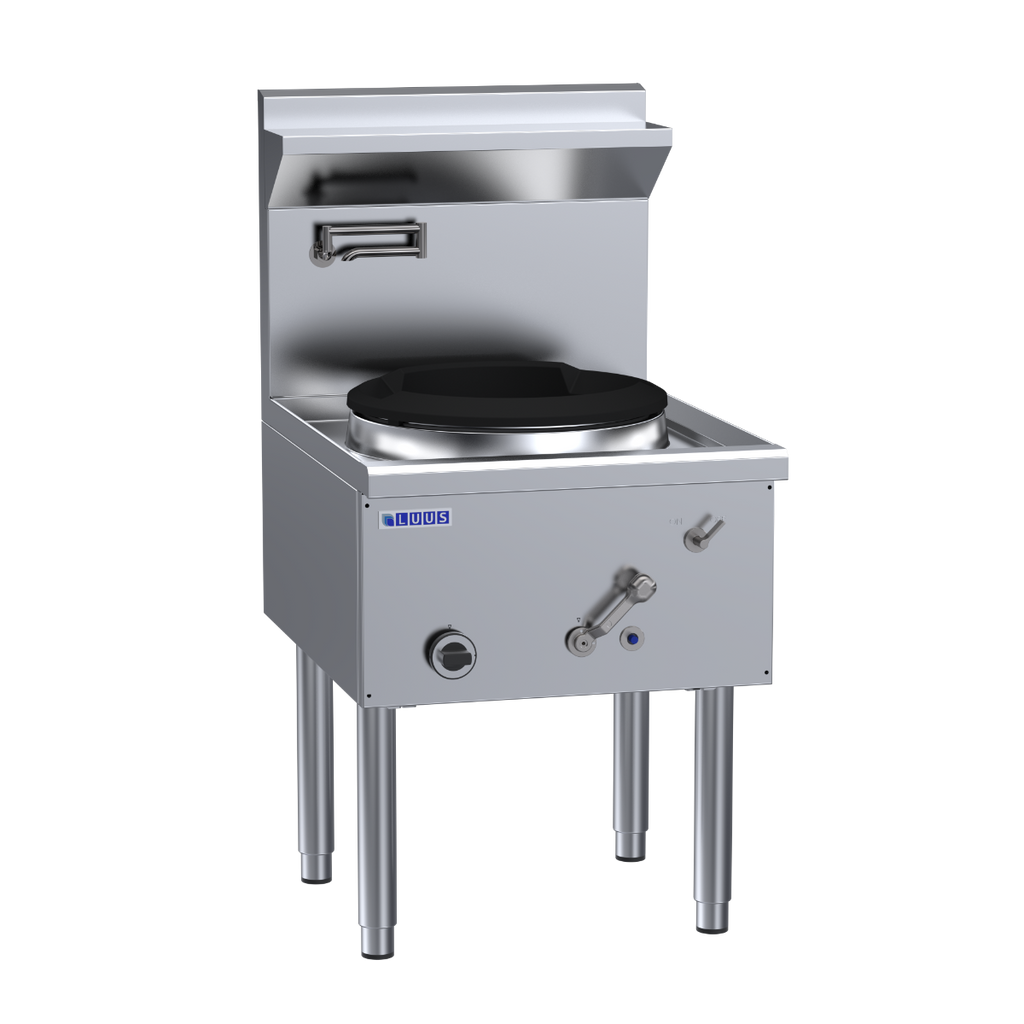

Luus WZ-17C Asian Range Waterless Woks
90 mj 18 jet duckbill burners with pilot & FFD
• 405mm diameter large size cast-iron wok ring
• Air gap cooling system
• Quarter turn water control lever
• Front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles
Overall Construction
• Heavy duty construction
• Full skirt, enamelled cast-iron rings
• 1.5mm 304 stainless steel one-piece pressed deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback and front cover 1.2 mm 304 stainless steel
• Integrated hob 1.5mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Undertrays 0.9mm stainless steel
• Stainless steel removable legs
• 30mm height adjustment range
Dimensions
• 650mm x 800mm x 1300mm H
• Working height 800mm
• Weight 95kg
• Packed dimensions 710mm x 900mm x 1460mm H
• Packed weight 123kg

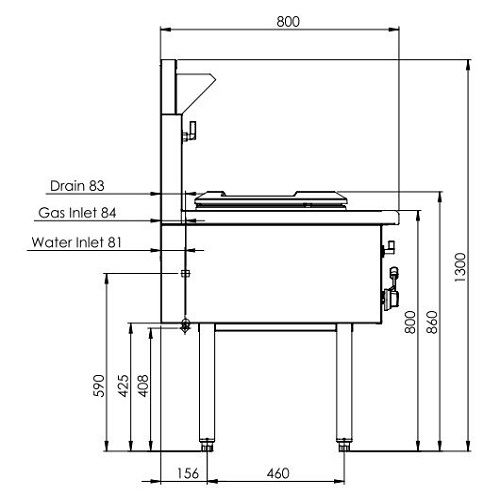

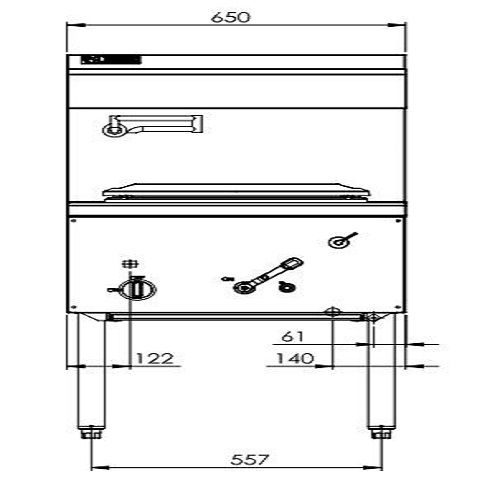

Connections
• Gas 3/4” BSP Female
• Gas 61mm from right, 84mm from rear, 425m to floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 140mm from right, 81mm to rear, 408mm to floor
• Drain 1/1/4” BSP male
• Drain 122mm from right, 83mm from rear, 590mm to floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Knee lever timer tap
• Replace Duckbill burner with Chimney Dual Ring burner (110mj)
• Replace Standard Duckbill burner with High Output 28 inj Duckbill burner (145MJ)
• 250mm and 500mm wide clip on shelves (front)
• Wok Holder
• Clip On Sauce Holder
• Injector Cleaning Tool
• Joining caps & strips
• RH and LH side shields
• Rear castors
