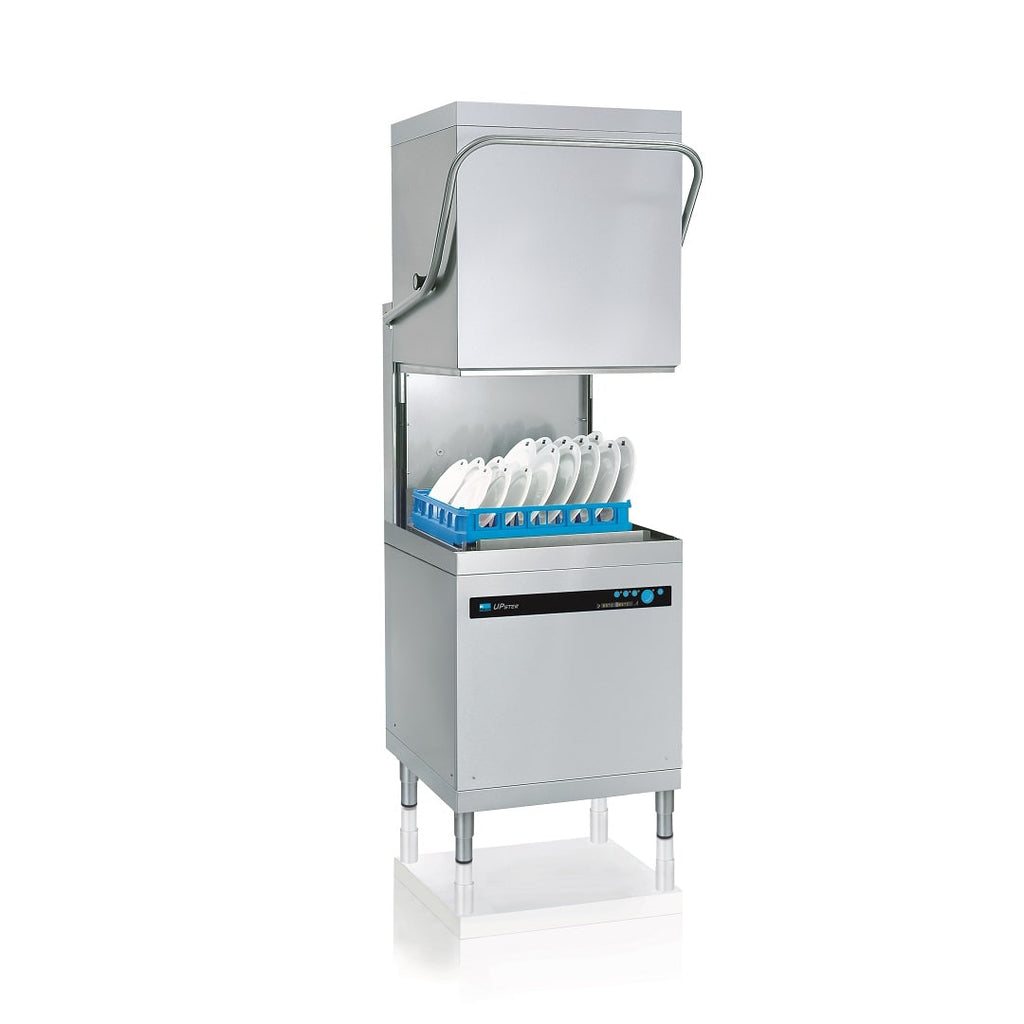

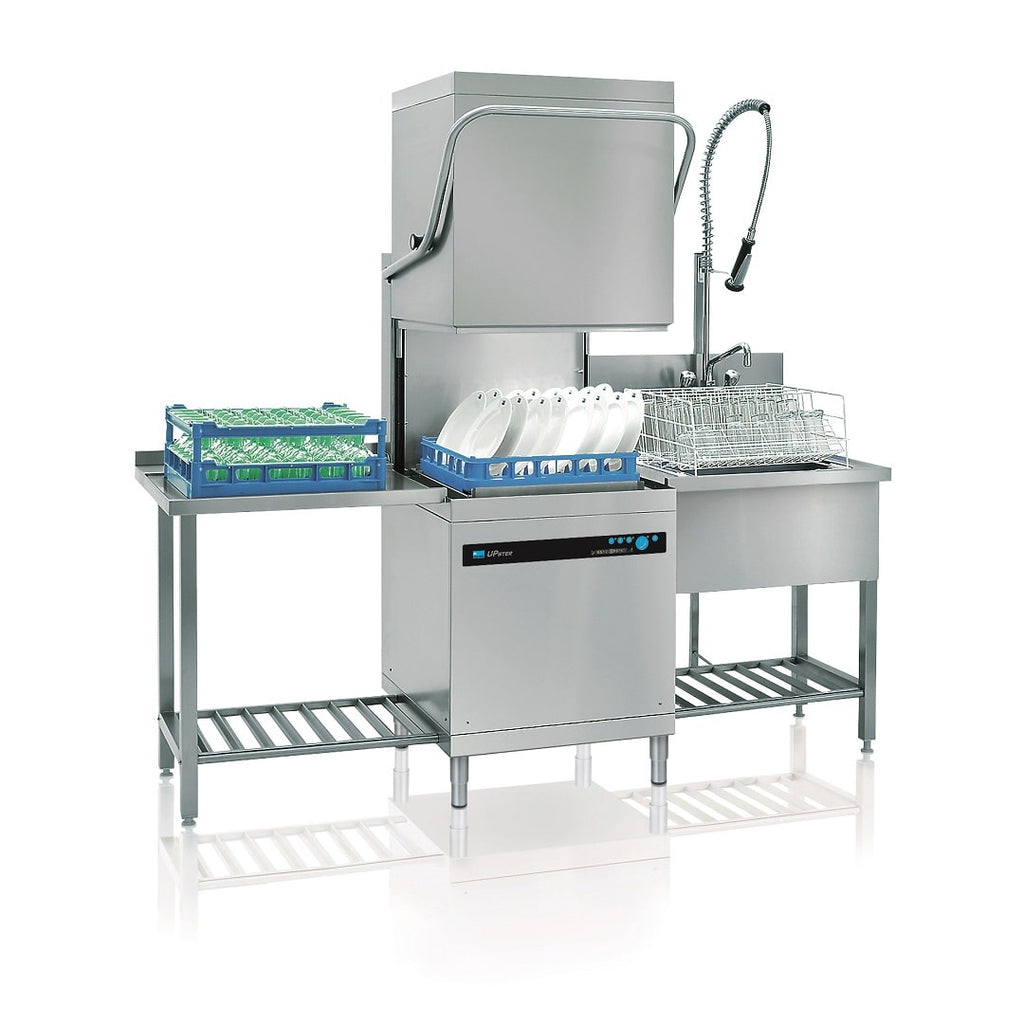

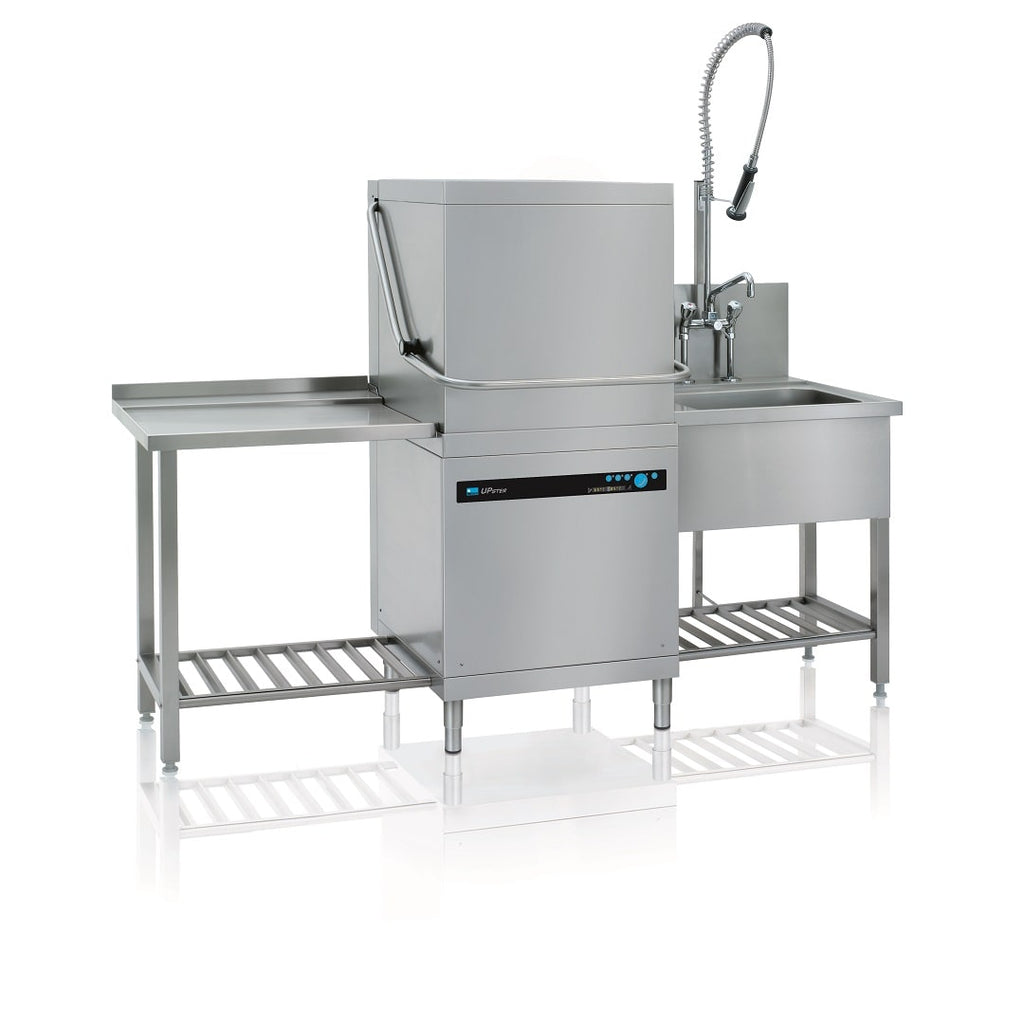

Meiko Upster H 500 M2 - Passthrough Dishwasher
The UPster® H 500 impresses with its optimised wash and rinse system, flawless tank design and a unique filter system. The hood type dishwashing machine offers all the space you'll need with a roomy passing height of 440 mm. Even Euronorm trays, large dishes and tall beer glasses don't pose a problem. They just slide right into the UPster® H 500.
Leakage protection
- High operating reliability thanks to the water leak detection system, optimum protection of all built-in components.
Active water filtration
- Excellent washing results thanks to excellent wash water filtering and optimum tank water regeneration with the AktivPlus filter system.
Stainless steel wash & rinse arms and dosing pipes
- Robust for heavy commercial use: wash and final rinse arms as well as dosing pipes made of stainless steel.
Polish-free wash results with optional GiO module
- The MEIKO GiO MODULE is the reverse osmosis system for spotless wash and drying results. No manual polishing needed.
K202509
Warranty 12 months
Downloads
| Rack dimension |
500 x 500 mm bis 540 x 500 mm |
| Entry height |
315 mm |
| Dimensions (W x Hmin x D) |
600 x 700 x 600 mm |
| Programme cycle |
160 / 240 / 360 s |
| Rack capacity/h (theoretical) |
22 / 15 / 10 racks/h |
| Tank filling |
11,0 l |
| Rinse water volume |
2,6 liters/cycle |
| Total connected load |
2,9 kW |
| Local fuse protection |
16 A |
| Boiler heating |
2.00 kW / 8.70 A |
| Tank heating |
2.00 kW / 8.70 A |
| Wash pump |
0.55 kW / 4.00 A |
| Protection class of the machine |
IP X4 |
Measurements
