Description

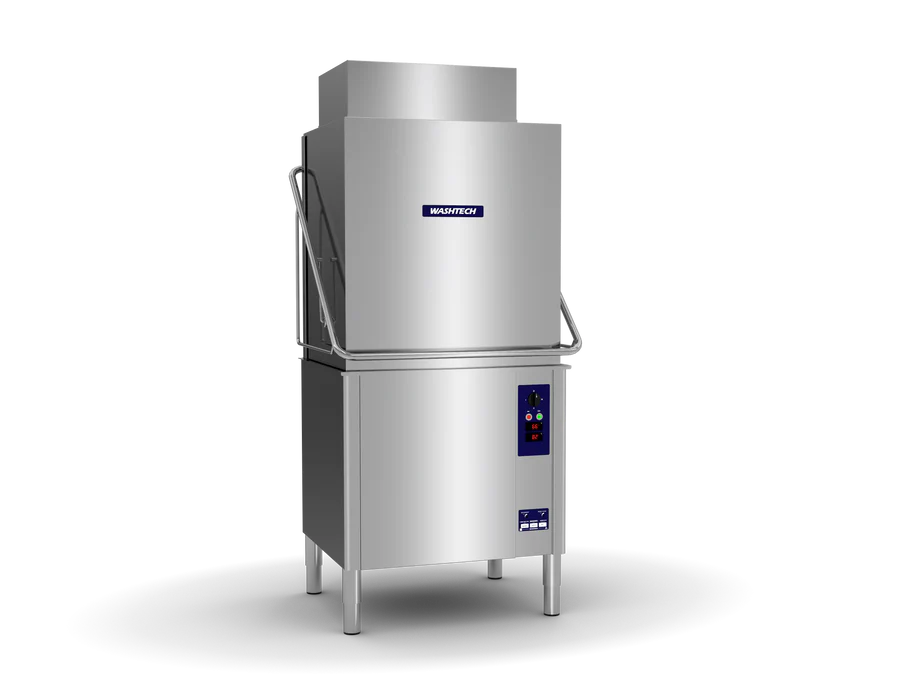

Washtech AL8C Passthrough Warewasher with Heat Recovery Unit - 500mm x 600mm Rack / 415V / 203kg / W905 x D760 x H2010
Washtech warewashers are built to improve the efficiency of operations washing oversized and/or
heavily soiled items, from bakeries to production kitchens, supermarkets to hospitals. This is achieved
with a continuous and consistent wash process throughout the day that is easy on your staff. With
highly efficient water consumption rates, they are also light on the environment and operating costs.
The AL8C is a powerful, highly durable, simple-to-use and easy-to-maintain passthrough warewasher. It
features Washtech hybrid controls which combine IP67 stainless switches, tried-and-tested switchgear,
with a customisable electronic timer. Built with a large wash chamber and counterbalanced
passthrough door, the AL8C is ideal for washing bins, crates, bowls and other oversized items. The AL8C
also features a highly efficient heat recovery unit which ensures minimal energy consumption and
steam emissions, for even lower operating costs and an improved working environment.
Since 1981 Washtech dishwashers have been constructed from heavy-duty stainless steel, and are
engineered specifically for Australian conditions and regulations. Backed by the most extensive service
network and spare parts inventory in the region, your Washtech AL8C will not let you down.
Special Features
• Suitable for installation without an extraction canopy in many situations
• Integrated heat recovery unit reduces steam emissions and energy consumption and optimises for fast, efficient operation on cold inlet water
Standard Features
• Versatile 2.5, 4.5 and 6.5 minute wash cycles
• Large internal wash chamber with useable area of
• W 700mm x D 540mm x H 650mm
• Low water consumption of 2.6 litres per cycle
• Washtech hybrid controls
• Easy installation supplied with:
• Water supply hose
• Detergent and rinse aid pumps with injector lines
• High powered wash system
• Suitable for connection to low inlet water pressure (break tank and rinse pump fitted)
• Heavy-duty stainless steel construction and wash manifold
• Robust stainless steel wash and rinse arms with precision stainless steel jets
• Double heavy duty stainless steel filtration system including dual scrap trays and separate wash inlet filter
• Wash chamber easily accessible via counter-sprung hood
• Easy loading with inline bench work
• Watermark approved backflow prevention
• Moffats comprehensive 5-2-1 Warranty
Includes:
• 1 x 500x600mm dish rack (600 70042)
• 1 x 500x600mm cup rack (600 70043)
• 1 x 435mm cup cover (K0452)
• 1 x cutlery basket (C660508)
• 1 x cutlery container (C660503)
| Product Code | AL8C |
|---|---|
| Weight | 203 kg |
| Height | 201 cm |
| Width | 90.5 cm |
| Depth | 76 cm |
| Product Origin | New Zealand |
| Brand | Washtech |
| Power Rating | 415V, 3P+N+E. 50Hz, 25amp 18.0kW |
| Warranty | 5 years on the cabinet, 2 years on the wash pump, and a comprehensive parts and labour warranty for the first 2 Years |
Updated 10 2024
