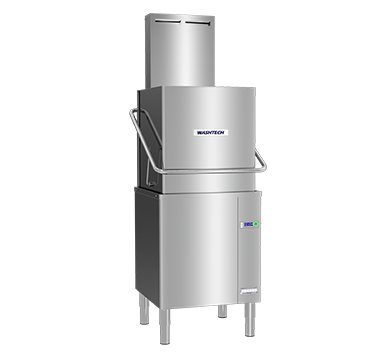

Washtech M2C Professional Passthrough Dishwasher with Heat Condensing Unit - 500mm Rack 415V 15A / 142kg / W705 x D720 x H2035
Product Description
- Pass through dishwasher
- 500 x 500 mm wash racks
- Heat Recovery Condensor
- Preheats cold water supply
- Uses exhaust air to heat incoming water
- Significant reduction of steam emitted
- Suitable for installation without canopy in many situations
- Must have good general dishroom ventilation
- 2.6 litres per cycle cold water consumption
- Up to 1000 plates per hour
- Electronic controls with enhanced functionality
- Multi–cycle options – 1, 2 and 3 minute cycles
- Manual cycle mode
- Ecopower
- Soft Start
- Self rinsing cycle
- Service diagnostics for error recognition
- Double filtration via scrap trays and separate wash inlet filter
- Dual chemical injectors
- Drain pump fitted standard
- Stainless steel upper & lower wash & rinse arms
- Removable cleaning caps
- 10kW electrical load reducible to 7kW
- 430mm door clearance
- Autostart on hood closure
- Anti–drip door edge channels water away from operator
- Easy clean L–shaped tank with curved corners
- Stainless steel construction
- Assured final rinse
- 316 stainless break tank & rinse booster
- QuickConnect
– Water supply hose
– Dual chemical injector lines
– Drain pump outlet hose - Corner or in–line installation
- Unique 595mm or 640mm bench gap installation option
- No commissioning required
- Watermark certified
- Includes:
- 2 x 6007028 – 500mm dish rack
- 1 x 6007029 – 500mm cup rack
- 2 x C660503 – cutlery containers
- Dimensions 705 x 765 x 2040 [h]; 97 kg
- Power 415/50/3 + E + N; 15 amps / phase
| Product Code | M2C |
|---|---|
| Height | 203.5 cm |
| Width | 70.5 cm |
| Depth | 72 cm |
| Product Origin | New Zealand |
| Brand | Washtech |
| Power Rating | Three Phase; 415V; 50Hz; 11.25kW |
| Warranty | 5 years on the cabinet, 2 years on the wash pump, and a comprehensive parts and labour warranty for the first 2 Years |
Updated 202409
