Zanussi 218830 Magistar Combi DS Electric Combi Oven 6GN1/1

Save $6,762.96

Price:
Sale price$15,053.04 Regular price$21,816.00

Description

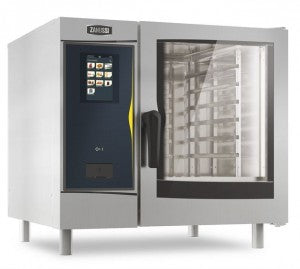

Zanussi / 218830 / Magistar Combi DS Electric Combi Oven 6GN1/1

Magistar Combi DS combi boiler oven with digital control, 6x1/1GN, electric, programmable, automatic cleaning, boiler in AISI304 (Australia)

    • 2 different chemical options available: solid and liquid (requires optional accessory).

    • Capacity: 6 GN 1/1 trays.

    • Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory – contact the Company for more details).

    • Digital interface with LED backlight buttons with  guided selection.

  • Built-in steam generator for highly precise humidity and temperature control according to the chosen settings.

  • Real humidity control based upon Lambda Sensor to automatically recognize quantity and size of food for consistent quality results.

  • Dry, hot convection cycle (25 °C - 300 °C): ideal for low humidity cooking.

  • Combination cycle (25 °C - 300 °C): combining convected heat and steam to obtain humidity controlled cooking environment, accelerating the cooking process and reducing weight loss.

  • Low temperature Steam cycle (25 °C - 99 °C): ideal for sous-vide, re-thermalization and delicate cooking. Steam cycle (100 °C): seafood and vegetables. High temperature steam (25 °C - 130 °C).

  • EcoDelta cooking: cooking with food probe maintaining preset temperature difference between the core of the food and the cooking chamber.

  • Pre-set program for Regeneration, ideal for banqueting on plate or rethermalizing on tray.

  • Programs mode: a maximum of 100 recipes can be stored in the oven's memory, to recreate the exact same recipe at any time. 4-step cooking programs also available.

  • AirFlow air distribution system to achieve maximum performance in chilling/heating evenness and temperature control thanks to a special design of the chamber combined with high precision variable speed fan.

  • Fan with 5 speed levels from 300 to 1500 RPM and reverse rotation for optimal evenness. Fan stops in less than 5 seconds when door is opened.

  • Single sensor core temperature probe included.

  • Automatic fast cool down and pre-heat function.

  • Reduced power function for customized slow cooking cycles.

  • HP Automatic Cleaning: Automatic and built-in self cleaning system with integrated descale of the steam generator. 5 automatic cycles (soft, medium, strong, extra strong, rinse-only).

  • Grease Collector: predisposed for integrated grease drain and collection for safer operation (dedicated base as optional accessory).

  • USB port to download HACCP data, share cooking programs and configurations. USB port also allows to plug-in sous-vide probe (optional accessory).

  • Connectivity ready for real time access to connected appliances from remote and HACCP monitoring (requires optional accessory).

  • Back-up mode with self-diagnosis is automatically activated if a failure occurs to avoid downtime.

  • Double thermo-glazed door with open frame construction, for cool outside door panel. Swing hinged easy-release inner glass on door for easy cleaning.

  • Seamless hygienic internal chamber with all rounded corners for easy cleaning.

  • 304 AISI stainless steel construction throughout.

  • Front access to control board for easy service.

  • IPX 5 spray water protection certification for easy cleaning.

  • Supplied with n.1 tray rack 1/1 GN,  67 mm pitch.

Electric
  • Supply voltage: 400-430 V/3N ph/50-60 Hz
  • Electrical power, default: 11.1 kW
  • Electrical power max.: 11.5 kW
  • Circuit breaker required
Installation:
  • Clearance: Clearance: 5 cm rear and right hand sides.
  • Suggested clearance for service access: 50 cm left hand side.
Key Information:
  • Door hinges:
  • External dimensions, Width: 867 mm
  • External dimensions, Depth: 775 mm
  • External dimensions, Height: 808 mm
  • Weight: 121.5 kg
  • Net weight: 121.5 kg
Water:
  • Water inlet "FCW" connection: 3/4"
  • Pressure, bar min/max: 1-6 bar
  • Drain "D": 50mm
  • Max inlet water supply temperature: 30 °C
  • Chlorides: <17 ppm
  • Conductivity: >50 µS/cm
Capacity:
  • GN: 6 - 1/1 Gastronorm
  • Max load capacity: 30 kg
